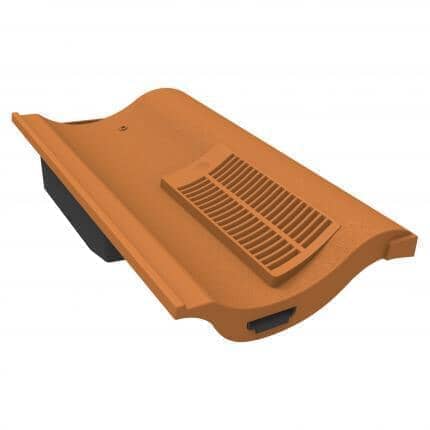

This antique red single pantile roof tile vent from Manthorpe has been designed with discretion in mind. The small format tile vent provides a quick and simple solution to the problems of roof space ventilation and mechanical extraction / soil stack termination through a roof covered with a concrete single pantile.

The in-line profile of this roof tile vent helps to maintain a uniform appearance whether it is placed high or low on the roofline.

The tortured path through the internal weathering geometry is designed to maintain a constant airflow gap of 5,000 mm² whilst channelling any water ingress out of the tile vent and on to the roof covering below, with the 4mm louvred grille in place to prevent the entry of debris and large nesting insects.

Why Choose the Single Pantile Roof Vent?

In-line and discreet low profile design
Compatible with Marley Anglia, Redland Fenland, Sandtoft Shire roof tiles (to check other tile types please contact us)
Suitable for concrete Interlocking single pantiles
4mm louvred flyscreen grille
Integral sidelock clip to ensure secure fit
Profiles suit all top tile manufacturers
Suitable for use down to a 20˚ roof pitch
Fully independently wind tunnel tested

Product Specifications:

Colour: Antique Red

Size 395 x 230mm

Free Vent Area 5,000mm²

Minimum Roof Pitch 20˚

Maximum Headlap 125mm

BRE Wind Tunnel Test Report No. 104-059

Material uPVC (upper), Polypropylene (base)

Manufacturing Process Injection Moulded

Single Person Installation Possible: Yes

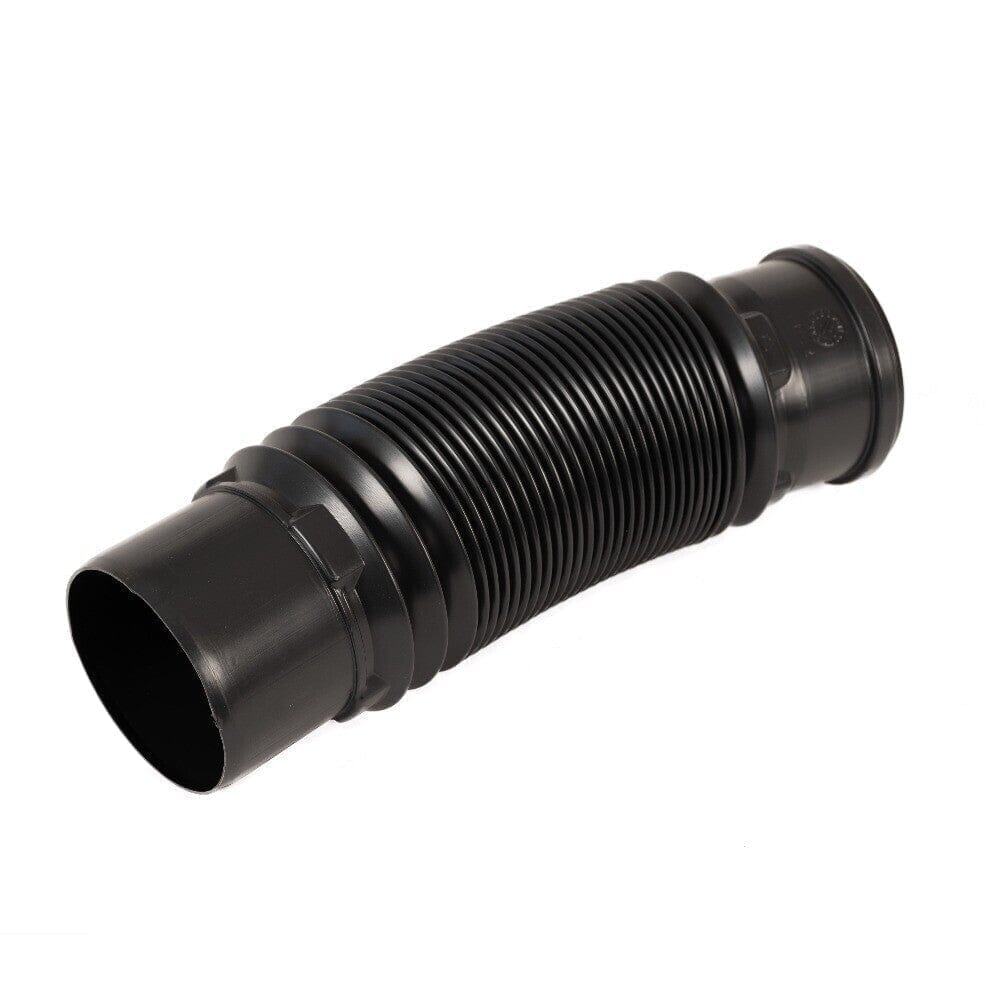

Please note: When using the vent for mechanical extraction or soil stack / vent pipe termination; the 4" diameter outlet on the base will connect directly onto one of the GRPA Flexible Pipe range.
